Understanding 4-Pole Motor Speed at 50Hz: A Deep Dive

The Basics of Motor Poles and Frequency

Ever wondered how those industrial motors spin at such precise speeds? It's a fascinating dance between the motor's design and the frequency of the power supply. In the realm of AC induction motors, the number of poles and the frequency of the electrical current are the primary factors determining the motor's synchronous speed. A 4-pole motor, as the name suggests, has four magnetic poles. When connected to a 50Hz power supply, a predictable speed emerges, but it's not quite as straightforward as a simple calculation.

Think of it like gears in a bicycle. More poles are akin to smaller gears, resulting in lower speeds but higher torque. Frequency, on the other hand, dictates how quickly the magnetic field rotates, driving the motor's rotor. In a 50Hz system, the alternating current completes 50 cycles per second. This frequency is the backbone of the motor's potential speed.

The synchronous speed of a motor is calculated using a simple formula: (120 x Frequency) / Number of Poles. So, for a 4-pole motor at 50Hz, we get (120 x 50) / 4 = 1500 RPM. This is the theoretical maximum speed. However, real-world conditions introduce a factor called "slip," which reduces the actual speed.

Why slip? Well, it's the difference between the synchronous speed and the actual rotor speed. Without slip, the motor wouldn't produce any torque. It's a necessary evil, but one that adds a layer of complexity to our speed calculations. You'll find that the actual speed is slightly less than 1500 RPM, typically around 1400-1450 RPM, depending on the load.

The Impact of Load and Slip on Motor Speed

Real-World Speed Variations

While the theoretical 1500 RPM is a good starting point, the actual operating speed of a 4-pole motor at 50Hz is rarely exactly that. Load, or the amount of work the motor is doing, plays a significant role in determining the actual speed. When a motor is under load, it experiences slip, which is the difference between the synchronous speed and the rotor speed. This slip is essential for the motor to generate torque, but it also means the motor will run slightly slower.

Imagine a car going uphill. It slows down because it's working harder. Similarly, a motor under a heavy load will slow down due to increased slip. The heavier the load, the more the slip, and the slower the motor will run. This is why motor manufacturers often provide speed-torque curves, which show how the motor's speed changes under different load conditions. These curves are invaluable for selecting the right motor for a specific application.

Temperature also affects motor performance. As a motor operates, it generates heat. This heat can increase the resistance of the motor's windings, which can, in turn, affect its speed and efficiency. Proper ventilation and cooling are essential for maintaining stable motor performance. Additionally, variations in the power supply can also impact motor speed. A stable 50Hz power supply is crucial for consistent motor operation.

Think of slip as the motor's way of telling you how hard it's working. A small amount of slip is normal, but excessive slip can indicate an overloaded motor. Monitoring the motor's operating speed and temperature can help identify potential problems before they lead to motor failure. It's like listening to your car's engine; you can often tell when something's not quite right.

Factors Affecting Motor Speed: Beyond the Basics

External Influences and Maintenance

Beyond the fundamental principles of poles and frequency, several external factors can influence the speed of a 4-pole motor. Voltage fluctuations, for example, can significantly impact motor performance. A drop in voltage can lead to a decrease in speed and an increase in slip. Conversely, an increase in voltage can cause the motor to run faster than its rated speed, which can be dangerous.

Environmental conditions also play a role. Extreme temperatures, humidity, and dust can affect motor performance and longevity. Proper ventilation and regular maintenance are essential for ensuring optimal motor operation. Dust and debris can accumulate inside the motor, obstructing airflow and causing overheating. Regular cleaning and lubrication can help prevent these issues.

The type of load connected to the motor also matters. A constant load, such as a conveyor belt, will result in a more stable speed than a variable load, such as a pump. Variable loads can cause fluctuations in motor speed, making it challenging to maintain consistent performance. In such cases, using a variable frequency drive (VFD) can help regulate the motor's speed and maintain stability.

Wear and tear on the motor's bearings and other components can also affect its speed. Worn bearings can increase friction, which can slow down the motor and reduce its efficiency. Regular inspections and maintenance can help identify and address these issues before they lead to motor failure. It's like taking care of your car; regular maintenance ensures it runs smoothly and efficiently.

Variable Frequency Drives (VFDs) and Speed Control

Modern Solutions for Precise Speed Adjustment

For applications requiring precise speed control, Variable Frequency Drives (VFDs) are indispensable. VFDs allow you to adjust the frequency of the power supplied to the motor, effectively controlling its speed. This is particularly useful in applications where the load varies, and consistent speed is crucial. VFDs can also improve energy efficiency by allowing the motor to run at the optimal speed for the given load.

Imagine a fan that needs to run at different speeds depending on the temperature. Instead of using a mechanical damper to restrict airflow, a VFD can adjust the fan's speed electronically. This not only saves energy but also provides more precise control. VFDs are widely used in industrial applications, such as pumps, fans, and conveyors, where speed control is essential.

Another advantage of VFDs is their ability to provide soft starting and stopping. This reduces stress on the motor and connected equipment, extending their lifespan. Soft starting also reduces the inrush current, which can help prevent electrical system overload. In essence, VFDs offer a sophisticated and efficient way to control motor speed, making them a valuable tool in many industrial settings.

Implementing a VFD can also improve the overall system performance. By fine-tuning the motor's speed, you can optimize processes and reduce downtime. It's like having a fine-tuned engine in your car; it performs better and more efficiently. And just like a car, VFDs require proper setup and maintenance to ensure optimal performance.

Practical Applications and Considerations

Where 4-Pole Motors Shine

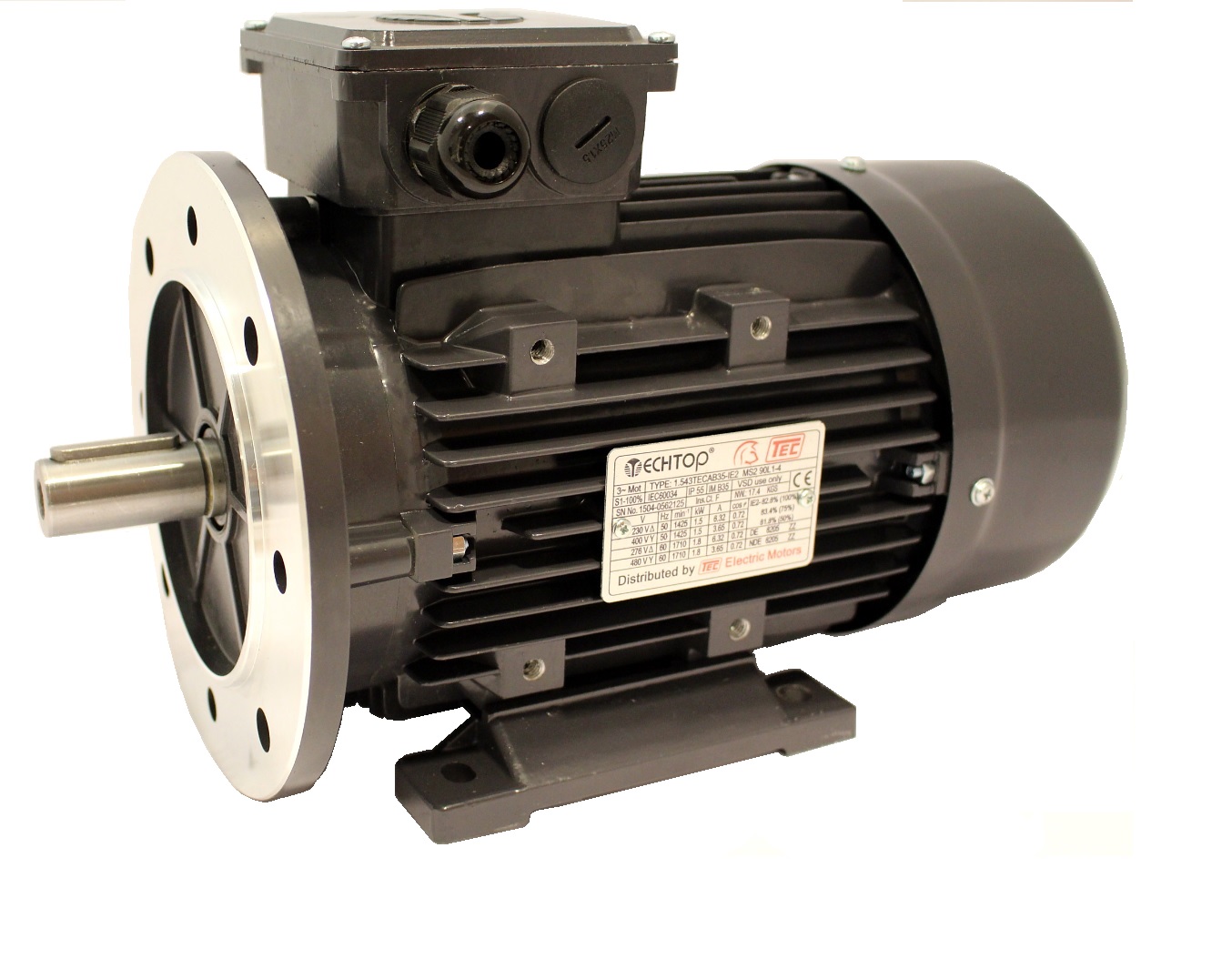

4-pole motors are widely used in various industrial applications due to their balance of speed and torque. They are commonly found in pumps, fans, compressors, and conveyor systems. Their robust design and reliable performance make them a popular choice for many industrial settings. When selecting a 4-pole motor, it's essential to consider the specific requirements of the application, including the load, speed, and environmental conditions.

For example, in a pumping application, the motor needs to provide enough torque to overcome the resistance of the fluid being pumped. In a conveyor system, the motor needs to maintain a consistent speed to ensure smooth and efficient material handling. Understanding the specific needs of the application is crucial for selecting the right motor.

When installing a 4-pole motor, it's essential to ensure proper alignment and secure mounting. Misalignment can cause excessive vibration and premature bearing failure. Proper ventilation and cooling are also crucial for maintaining optimal motor performance. Regular inspections and maintenance can help prevent potential problems and ensure the motor's longevity.

Choosing the correct motor and implementing proper maintenance practices can significantly impact the efficiency and reliability of industrial systems. It's like choosing the right tool for the job; it makes all the difference. And just like any tool, motors require care and attention to perform their best.

Frequently Asked Questions (FAQs)

Your Motor Speed Questions Answered

Q: What is the synchronous speed of a 4-pole motor at 50Hz?

A: The synchronous speed is 1500 RPM, calculated using the formula (120 x Frequency) / Number of Poles.

Q: Why is the actual speed of a 4-pole motor less than 1500 RPM?

A: The actual speed is less due to "slip," which is the difference between the synchronous speed and the rotor speed. Slip is necessary for the motor to produce torque.

Q: How does load affect the speed of a 4-pole motor?

A: Increased load leads to more slip, which reduces the motor's actual speed. Heavier loads result in slower operating speeds.

Q: Can a Variable Frequency Drive (VFD) change the speed of a 4-pole motor?
